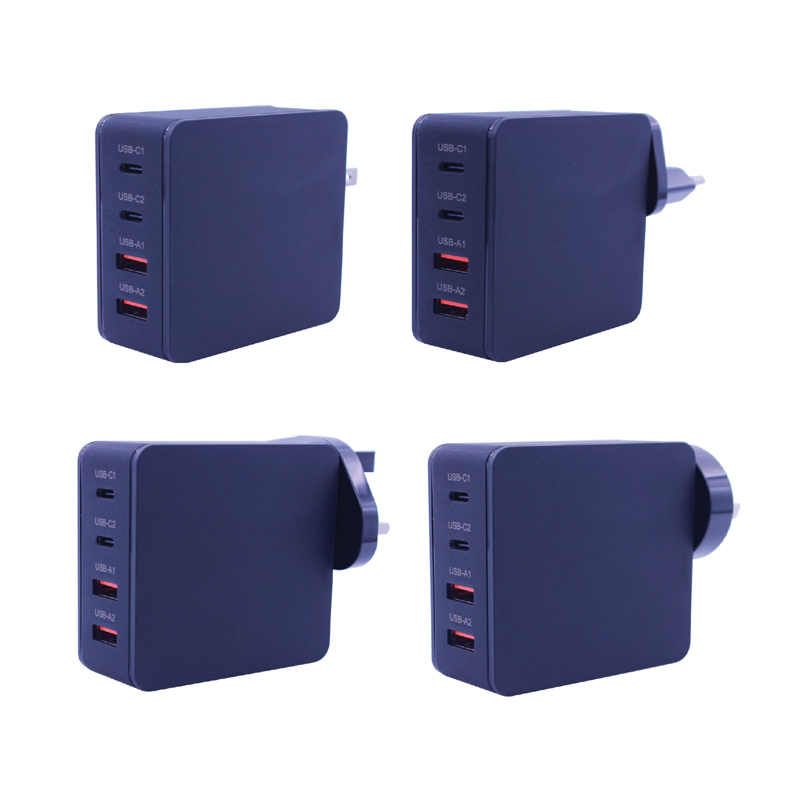

66W

Availability:
Quantity:

Specs:

Input : AC 100~240V 50/60Hz

USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.4A, 48W(max.) ^

USB-C2: 5V/3A, 9V/2A,12V/1.5A, 18W (max.) ^

USB-A Qualcomm Quick Charge 3.0:

USB-A1: 5V/3A, 9V/2A,12V/1.5A, 18W (max.)*

USB-A2: 5V/3A, 9V/2A,12V/1.5A, 18W (max.)*

Total Output: 66W


Working Scenario :

^Single USB Type-C Output: PD1 48W or PD2 18W

^Two USB Type-C Output at Once: PD1 30W +PD2 18W

*Support PD3.0,Qualcomm Quick Charge 3.0 and Huawei FCP

*Two USB-A ports (18W max.) support BC1.2

and Apple 2.4A fast charge without being

affected by the USB Type-C ports.


Dimension:(L)72.5*(W)72.5*(H)30mm

Ssfety standard:IEC/UL 62368

EMC standard:PART 15 Subpart B
